Brixton

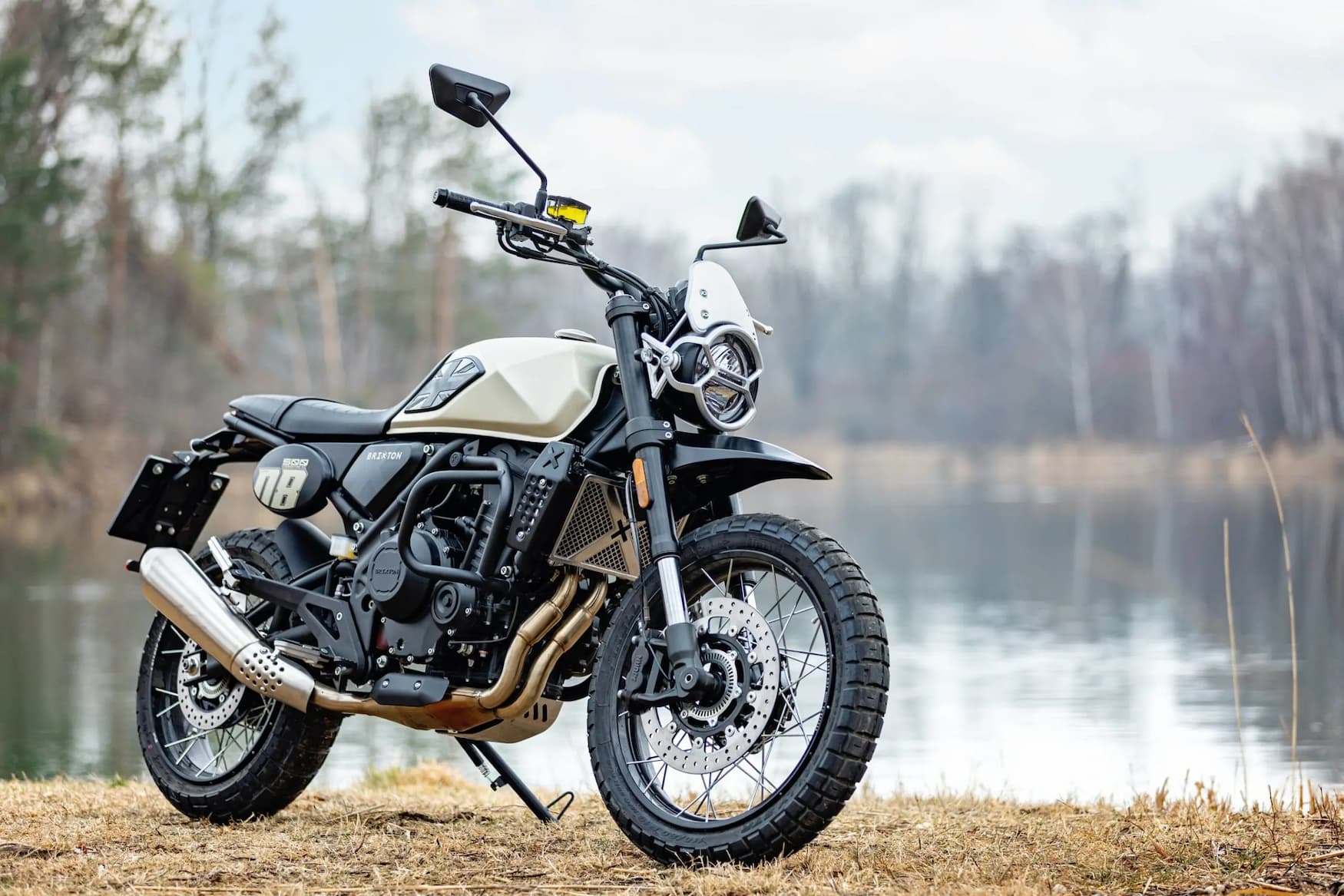

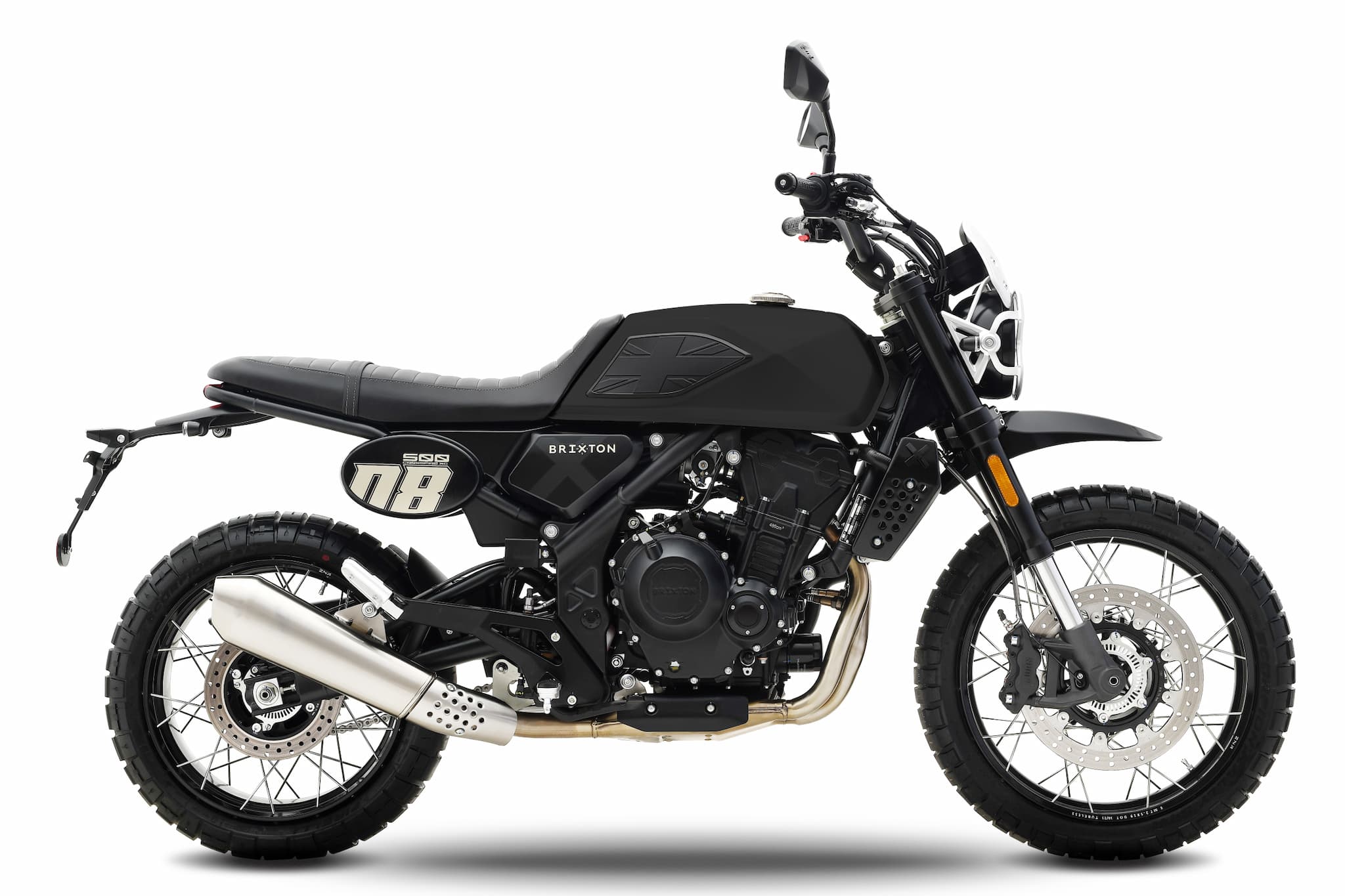

Crossfire 500 XC

The road stops, the ride continues.

Retail

7699 €

Available to order — contact us to arrange a viewing

Motorcycle transport by agreement. Shipping info

Visit us at Motorock — Pärnu mnt 328

01 / 03

  • Max. Power

    35 kW / 8500 rpm**

  • Max. Torque

    43 Nm / 6750 rpm**

  • Engine Capacity

    486 cc

  • Mass in running order

    195 kg

Overview

Crossfire 500 XC

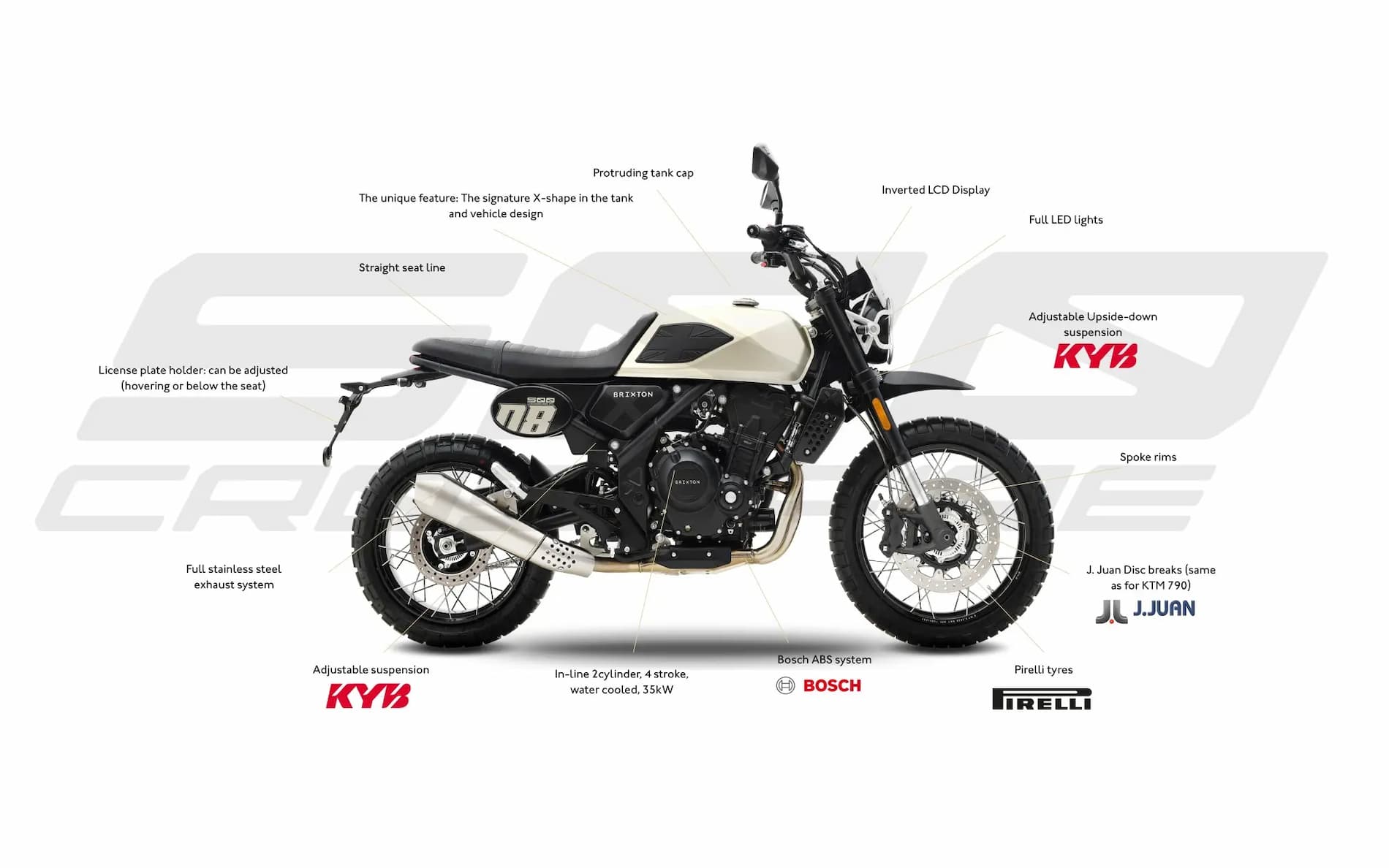

SUSPENSION

The adjustable suspension elements come from Kayaba/KYB and, with 150 mm of travel at the front and 130 mm at the rear, have sufficient reserves for back roads and lighter terrain. The upside-down fork is adjustable in compression, the central shock in spring preload and rebound. However, the combination of suspension and wheel dimensions takes the XC to a new handling level on asphalt as well. No 500cc Crossfire moves more fluently through bends, and none feels swifter.

PROTECTIVE EQUIMENT

With the crash bar fitted as standard, the 500 XC is prepared for what you don’t want to admit but will happen off-road: the first rollover, the first fall. The skid plate also protects the engine from hard impacts, and with the radiator grille and headlight guard, the XC is also factory-equipped for stone impacts.

BRAKING SYSTEM

The J.Juan hydraulically actuated brake is particularly well suited to the geometry of the higher Crossfire 500 XC, and its strengths are particularly noticeable when braking and turning into corners. With a pleasantly soft initial pressure point and linear deceleration, a radial 4-piston caliper works on a 320 mm brake disc at the front and a 2-piston caliper on a 240 mm disc at the rear.

19 inch front, 17 inch rear

With the large 19 inch front wheel and 17 inch rear, the Crossfire 500 XC has dirt track dimensions. In conjunction with the longer suspension travel, this gives it considerable ground clearance – important on off-road rides but also noticeable on asphalt thanks to greater lean angle clearance. In addition, tank pads provide better knee closure/contact and more control.

Technical

Under the tank

Engine & transmission

Engine Type
in-line, 2 cylinder, 4-stroke, water cooled
Max. Power
35 kW / 8500 rpm**
Max. Torque
43 Nm / 6750 rpm**
Transmission
6-speed manual
Ignition
ECU
Starter
E-starter
Engine Capacity
486 cc
Fuel Tank Maximum Capacity
13,5 l

Dimensions & weight

Mass in running order
195 kg
Permissible Maximum Weight
355 kg
Length
2164 mm
Width
851 mm
Height
1203 mm
Seat Height
839 mm
Number of seats
2
Fuel Tank Maximum Capacity
13,5 l

Crossfire 500 XC
