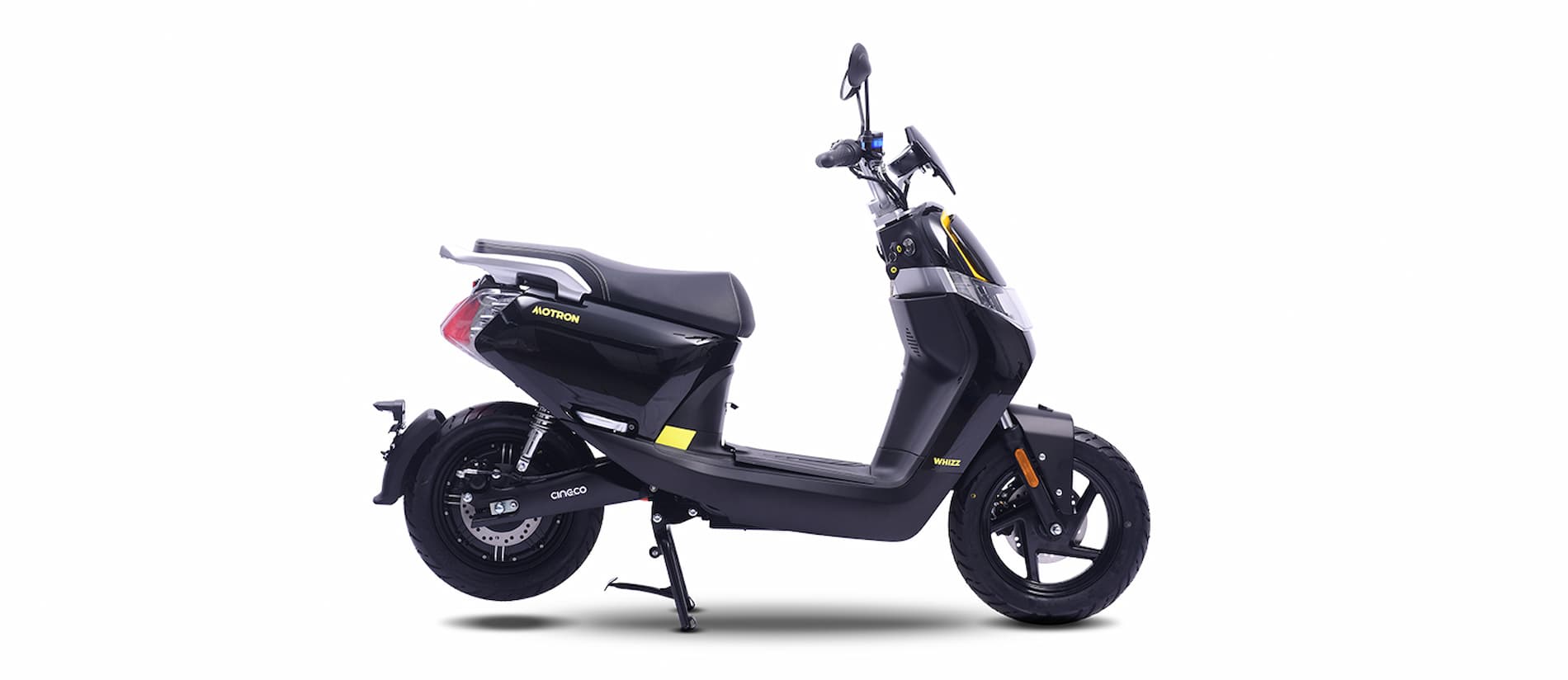

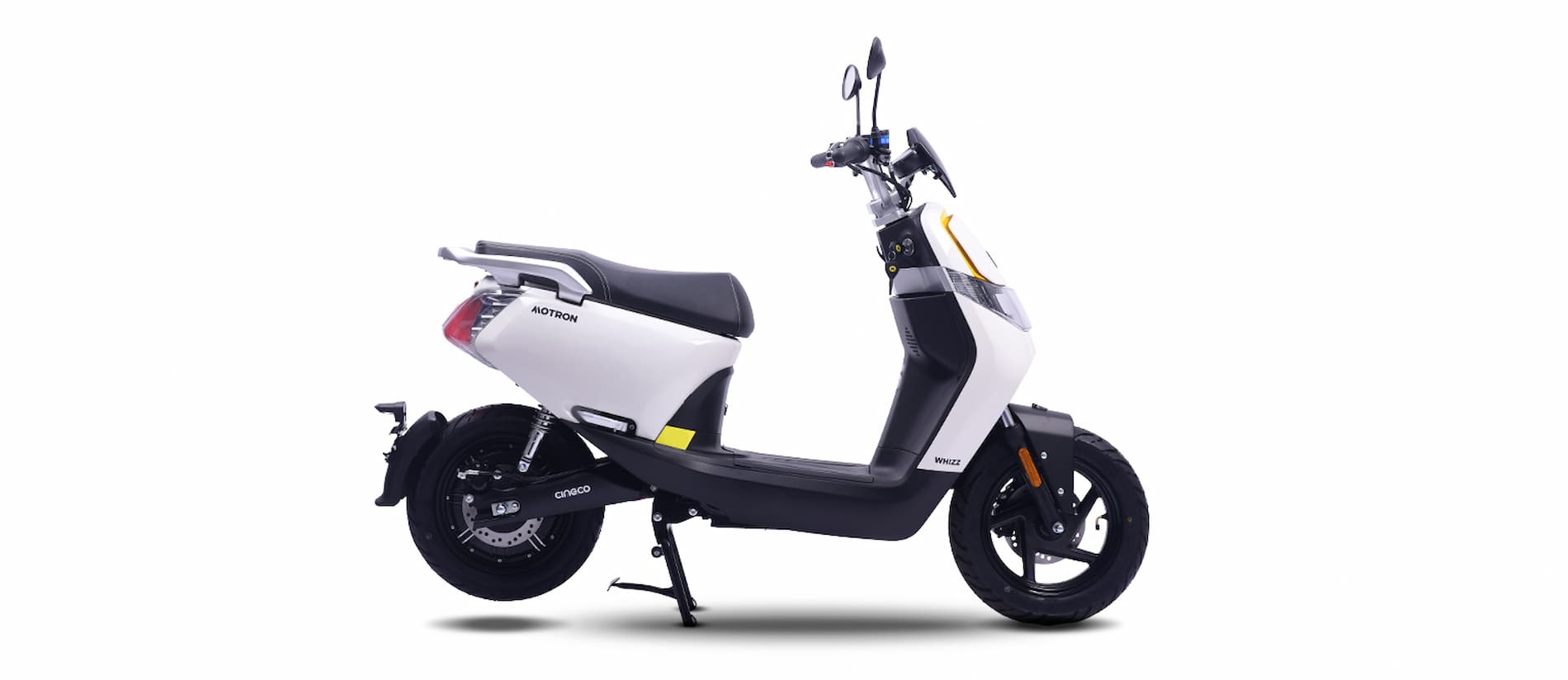

Motron Whizz

Motor:

• BOSCH Brushless DC electric wheel hub motor

Nominal voltage:

• 60V

Nominal Power:

• 2,0 kW @ 430 min-1

Maximum torque:

• 45 Nm @ 430 min-1

Power stages:

• 3

Battery

Type:

• Lithium-Ion

Nominal capacity:

• 24 Ah | 1440Wh

Max speed:

• 45 km/h

Number of seating positions:

• 2

Length:

• 1800mm

Width:

• 690mm

Height:

• 1150mm

Kerb weight(without battery/-ies):

• 78kg

Operating mass:

• 87 kg

Max permitted weight:

• 237kg

Range:

• 46km

Gradability:

•  20%

Energy consumption:

• 33 Wh/km

Front brakes:

• Hydraulic disc brake, brake disc Ø 200 mm

Rear brakes:

• Hydraulic disc brake, brake disc Ø 190 mm

Front Suspension:

•  Telescopic fork

Rear Suspension:

• Swingarm with dual shock absorber

Wheels & Tires:

• Front wheel rim MT2.15 x 12 Rear wheel rim MT2.15 x 12

Tire size:

•  Front tire 90/90-12 Rear tire 90/90-12
